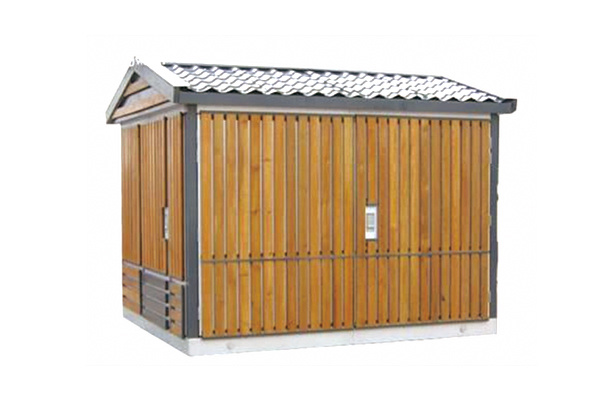

The enclosure shell can be made of various materials with sufficient mechanical strength; the color of the enclosure shell should harmonize with the surrounding environment; the slope of the enclosure top cover shall be no less than 3 degrees, and a rainproof eave should be installed. A louvered vent should be provided at the inner top of the enclosure to ensure natural ventilation.
The bottom of the enclosure features an effective seal to prevent small animals from entering the enclosure through the cable trench. The enclosure is equipped with a dedicated grounding conductor connected to the grounding grid. Inside the enclosure is installed a UN3 series ring main unit.
Normal usage environment: Outdoor
Altitude: <5000m (Special note required if the equipment is operated at an altitude exceeding 2000m);
Ambient temperature: Maximum temperature +50℃, minimum temperature -50℃, average value within 24 hours ≤35℃;
Ambient humidity: Average relative humidity over 24 hours ≤ 95%;
Monthly relative humidity: Average <90%;
Electromagnetic interference: The amplitude of electromagnetic interference induced in the secondary system is less than 1.6 kV;
Installation environment: The surrounding air contains no explosive or corrosive gases, and the installation location is free from frequent, severe vibrations or shocks.
Enclosure protection rating: IP55;
Note: If the operating environment exceeds the above-mentioned normal range, users will need to coordinate with the manufacturer when placing an order.
A single-line system diagram, including the rated voltage, rated current, and short-circuit capacity of the incoming line.
Secondary circuit schematic diagram, including the rated currents of the operating, signaling, and protection circuits, as well as the model and specifications of each electrical component.
Switchgear arrangement diagram and layout dimensions.
Model, specifications, and quantity of electrical components inside the cabinet.
Spare parts list.
If you have special requirements, you can discuss customization with the company when placing your order.
